8 GHz TO 12 GHz

3.5W MMIC PA

Linear Power Delivery & High Gain

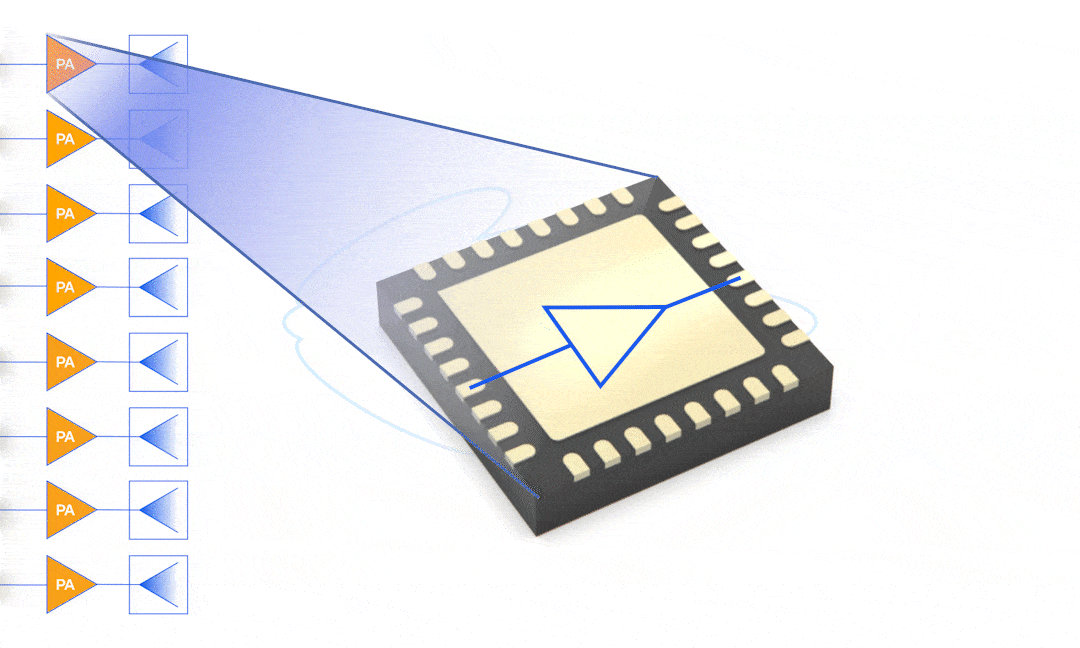

Mini-Circuits’ new 3.5W MMIC power amplifier provides high dynamic range with significant headroom for high PAPR signals from 8 to 12 GHz. Nearly 30 dB of gain makes the PMA5-123-3W+ an excellent driver stage for pulsed or linear systems. This model comes in a compact 5 x 5 mm QFN-style package, ideal for shoehorning into dense board layouts and meeting demanding SWaP targets. This model is ideally suited for X-band radar, wireless and VSAT systems, and more!

EXPLORE PMA5-123-3W+

Key Features:

High gain, 28.3 dB
P_1dB, +34.4 dBm
P_SAT, +35.7 dBm
OIP3, +43.8 dBm
5x5 mm QFN-style package

Explore More MMIC PAs

PMA5-83-2W+

10 MHz to 10 GHz
+31 dBm P1dB
+33 dBm P_SAT
3.5 dB NF
+43.5 dBm OIP3
+12V, 400 mA supply

Learn More>

PMA5-63-2W+

10 MHz to 6 GHz
+31.2 dBm P1dB
+33.8 dBm P_SAT
2.7 dB NF
+44.5 dBm OIP3
+12V, 400 mA supply

Learn More>

PMA5-83-LV+

10 MHz to 10 GHz
+28.7 dBm P1dB
+31.2 dBm P_SAT
2.6 dB NF
+40.8 dBm OIP3
+8V, 400 mA supply

Learn More>

Recent News

110 GHz Armored Cables

Mini-Circuits’ line of 1.0 mm-terminated coaxial cables includes a half dozen lengths and connector mating ...
Learn More

Right Angle Waveguide to Coax. Adapters

Mini-Circuits’ expanded line of adapters now includes right angle adapters transitioning WR10, WR12, and WR15 ...
Learn More

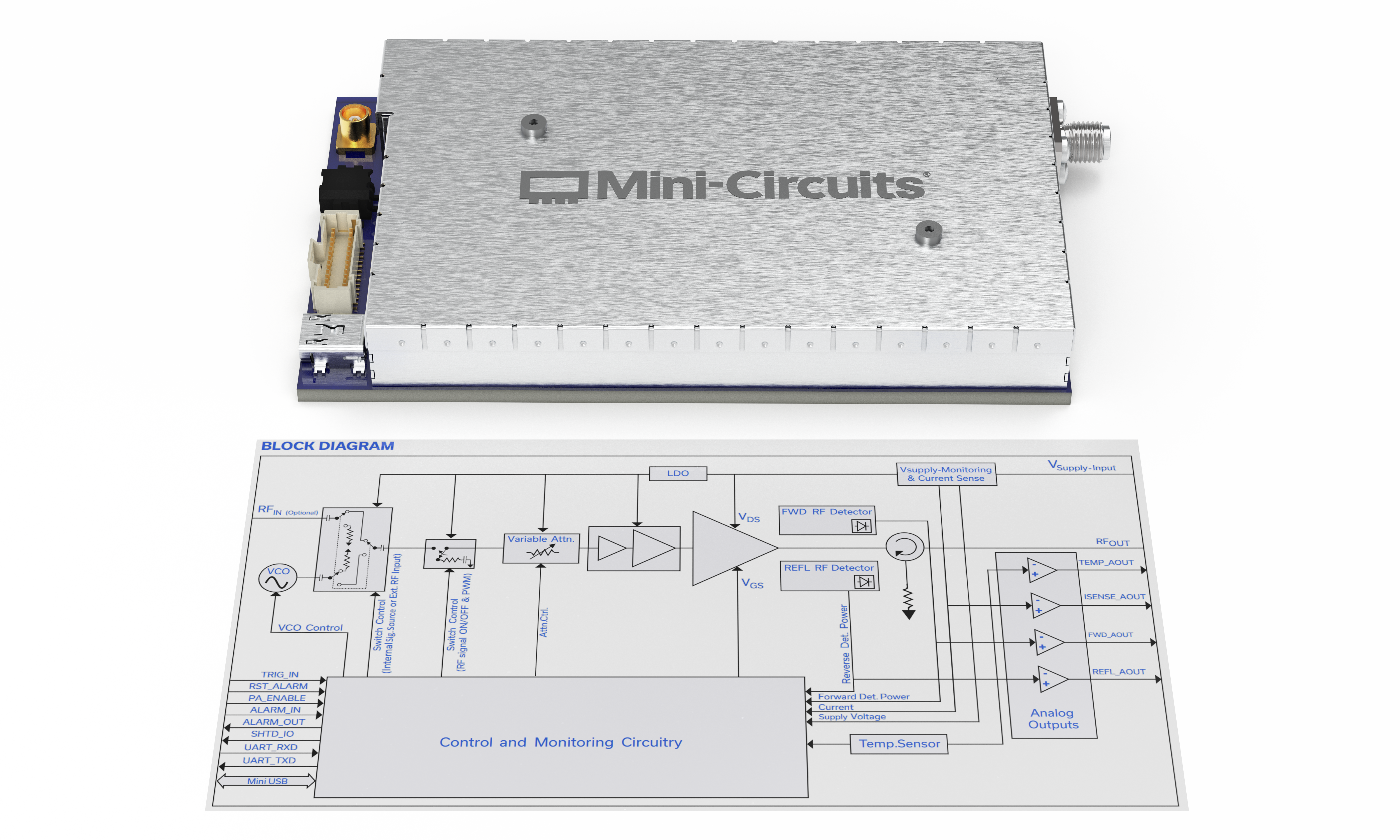

Turnkey 50W RF Energy Source
